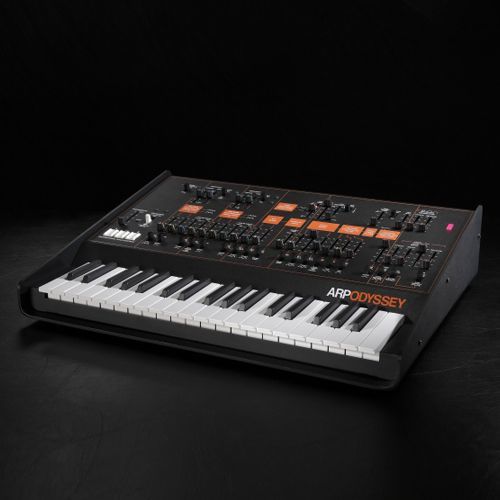

ARP ODYSSEY

ARP ODYSSEY

KIRK YIL SONRA  BİR EFSANE CANLANDI

ARP Odyssey ilk olarak 1972'de  Amerikan ARP Instruments şirketi tarafından üretildiğinde, ünü müzisyenler arasında çok hızlı bir şekilde yayıldı. Onu bu derece değerli kılan, kullanımının kolaylığı ve portatif olması sayesinde oldukça uzun soluklu üretimine, bazı ekonomik zorluklar ve dijital ürünlerin de türemesiyle 1981 yılında son verildi.

Bugün 2015'de KORG, ARP Instruments şirketinin kurucu ortaklarından David Friend'in fikir ve tecrübelerinden faydalanarak ARP Oyssey'i Orijinal devrelerine sadık kalınmış bir biçimde kalsik soundunun yanı sıra yenilerinin de keşfine olanak tanıyan şekli ve koruyucu yarı hard-case'iyle birlikte müzik dünyasına geri kazandırıyor.


Özellikler

Klavye: 37-Tuş, Slim Key, Velocity HassasiyetiYok, Aftertouch Özelliği Yok

Maksimum Polifoni: Duofonik için 2 ses; Normalde monofonik

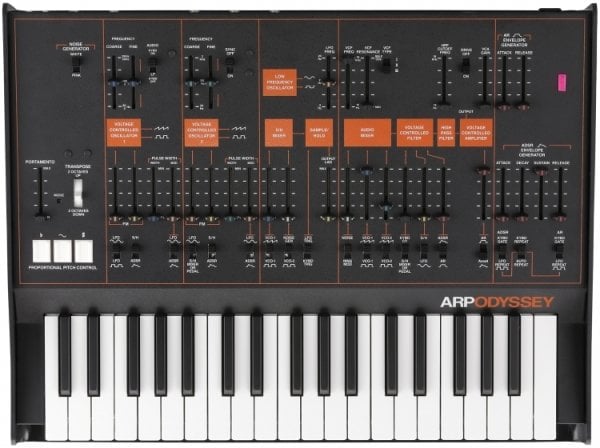

Kontroller

Transpoze: 2 Oktav aşağı, Normal, 2 Oktav yukarı

Pitch Kontrol: b (Pitch aşağı) Pad: -2 / 3 Oktav
                        - (Modulation Pad)
                        # (Pitch Yukarı) Pad: + 2 / 3 Oktav

Ses Jeneratörü: Ses spektrum türleri (beyaz ve pembe)

Portamento: Maksimum Hız 0.01 ms / oct, Minimum Hız 1.5 s / oct

VCO

Dalga Formları: Sawtooth, Square, Pluse (Dynamic Pluse)

Frekans Aralığı: VCO-1 düşük frekans modunda 0,2 Hz - 20 Hz
                            ve VCO-2 20Hz – 20kHz

Warm Up Drift: 1/30 yarım ton maksimumdan itibaren

Sinyal Aralığı: %50 - %5

Modülasyon Sinyal Aralığı: ADSR ,+45 % LFO, +15 %

Voltaj Kontrol Cevabı: 1V/oct

VCA: Dinamik aralık 80 dB

Ring Modülatör: Tip Dijital

Giriş Sinyali: VCO-1, VCO-2 (square wave)

Sample&Hold: Yönetim Kaynağı Klavye veya LFO trigger

Sample Sinyaller: VCO-1 sawtooth dalga ve square dalga, VCO-2 square dalga ve pink noise

ADSR Envelope Jeneratör

Attack Zamanı: 5 ms – 5 sn

Decay Zamanı: 10 ms – 8 sn

Sustain Seviyesi: 0 – 100 % veya peak

Release Zamanı: 10 ms – 10sn

AR Envelope Jeneratörü

Attack Zamanı: 5 ms – 5 sn

Decay Zamanı: 10 ms – 8 sn

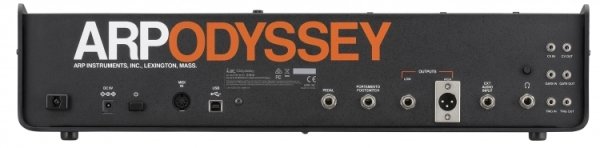

Kontrol Girişleri

Pedal: 6,3 mm mono jak

Portamento Foot Switch: 6,3 mm mono jak

Audio Çıkışlar

Low  Konektör: 6,3 mm mono jak Maksimum Çıkış: -20 dBu@ 10 kΩ  Çıkış Empedansı 10 kΩ

High Konektör: XLR Maksimum çıkış seviyesi +4 dBu@ 1 kΩ Çıkış Empedansı 330 Ω

Kulaklık Çıkışı: 6,3 mm stereo jak Maksimum Çıkış 50 mW+ 50 mW@ 33 Ω
Çıkış Empedansı: 10 Ω *Volüm düğmesiyle kontrol edilebilir.

Harici Audio Girişi:  6,3 mm mono jak Maksimum Giriş seviyesi -10 dBu
Giriş Emdansı 22  kΩ

MIDI Konektör: IN

USB Konektör: Tip B

CV IN/OUT: Klavye CV (IN/OUT) 1 V/oct. Konektör 3,5 mm mono jak

GATE IN/OUT: Gate IN +3 V (minimum), Gate Out +10 V, Key down; 0 V allkeys up
Konektör 3,5 mm mono jak

TRIG IN/OUT: TRIG IN +3 V pulse min,10 μsec. Minimum süreçte
TRIG OUT: +10 V pulse on key depression, 10 μsec. Duration Konektör  3,5 mm mono jak

Güç Kaynağı: DC 9V AC Adaptör

Güç Tüketimi: 6,5W

Boyutlar: 502 x 380 x 120 mm

Ağırlık: 5 kg

Aksesuarlar: AC Adaptör, ses kablosu, mini ses kablosu, kullanma kılavuzu, yarı hard-case

Opsiyonlar: XVP-10 Volüm Pedal, PS-1/PS-3 pedal switch










 Sawtooth, Square, Pluse (Dynamic Pluse)




   37-note (Slimkey, No velocity sensitivity, No aftertouch)


















The ARP Odyssey was an analog synthesizer originally produced in 1972 by the American manufacturer ARP Instruments, Inc. that quickly garnered a faithful following among musicians. Well respected for its high value, ease to play and portability, the ARP Odyssey had undergone several improvements during its history and continued to be a long-seller until manufacturing stopped in 1981 due to economic hardships and the digital surge. Loved by a wide range of musicians as a historical classic, its sound can be heard on numerous classic songs.

he ARP Odyssey was an analog synthesizer originally produced in 1972 by the American manufacturer ARP Instruments, Inc. that quickly garnered a faithful following among musicians. Well respected for its high value, ease to play and portability, the ARP Odyssey had undergone several improvements during its history and continued to be a long-seller until manufacturing stopped in 1981 due to economic hardships and the digital surge. Loved by a wide range of musicians as a historical classic, its sound can be heard on numerous classic songs.


FThe ARP Odyssey was an analog synthesizer originally produced in 1972 by the American manufacturer ARP Instruments, Inc. that quickly garnered a faithful following among musicians. Well respected for its high value, ease to play and portability, the ARP Odyssey had undergone several improvements during its history and continued to be a long-seller until manufacturing stopped in 1981 due to economic hardships and the digital surge. Loved by a wide range of musicians as a historical classic, its sound can be heard on numerous classic songs.

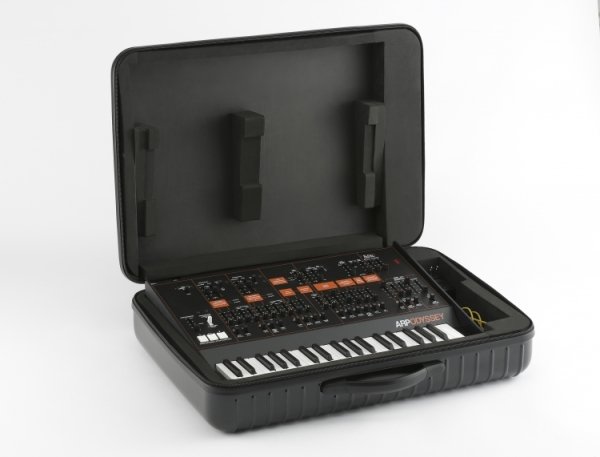

Now in 2015, KORG has brought back the ARP Odyssey for today. With the advisory assistance of David Friend, the co-founder of ARP Instruments, KORG has completely reproduced the original circuitry for artists looking to recreate classic sounds and explore new ones. Together the engineers at KORG and Arp were able to nailthe sound and feel of the original. Every detail has been carefully considered to stay true to the quality of the original, down to the sophisticated semi-hard case.
The legendary ARP sound is loved to this day. Long stopped, the wheels of history have again begun to move.

            ortyForty years later, a complete revival.
The legendary analog synthesizer that transformed its age.

The ARP Odyssey was an analog synthesizer originally produced in 1972 by the American manufacturer ARP Instruments, Inc. that quickly garnered a faithful following among musicians. Well respected for its high value, ease to play and portability, the ARP Odyssey had undergone several improvements during its history and continued to be a long-seller until manufacturing stopped in 1981 due to economic hardships and the digital surge. Loved by a wide range of musicians as a historical classic, its sound can be heard on numerous classic songs.
Now in 2015, KORG has brought back the ARP Odyssey for today. With the advisory assistance of David Friend, the co-founder of ARP Instruments, KORG has completely reproduced the original circuitry for artists looking to recreate classic sounds and explore new ones. Together the engineers at KORG and Arp were able to nailthe sound and feel of the original. Every detail has been carefully considered to stay true to the quality of the original, down to the sophisticated semi-hard case.
The legendary ARP sound is loved to this day. Long stopped, the wheels of history have again begun to move.

 years later, a complete revival.
The legendary analog synthesizer that transformed its age.

The ARP Odyssey was an analog synthesizer originally produced in 1972 by the American manufacturer ARP Instruments, Inc. that quickly garnered a faithful following among musicians. Well respected for its high value, ease to play and portability, the ARP Odyssey had undergone several improvements during its history and continued to be a long-seller until manufacturing stopped in 1981 due to economic hardships and the digital surge. Loved by a wide range of musicians as a historical classic, its sound can be heard on numerous classic songs.
Now in 2015, KORG has brought back the ARP Odyssey for today. With the advisory assistance of David Friend, the co-founder of ARP Instruments, KORG has completely reproduced the original circuitry for artists looking to recreate classic sounds and explore new ones. Together the engineers at KORG and Arp were able to nailthe sound and feel of the original. Every detail has been carefully considered to stay true to the quality of the original, down to the sophisticated semi-hard case.
The legendary ARP sound is loved to this day. Long stopped, the wheels of history have again begun to move.
