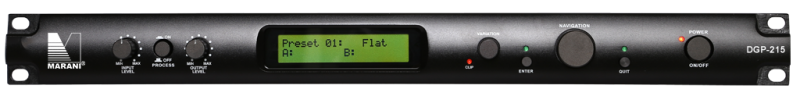

DGP215 Parametrik Equalizer
0 - Yorum Yap
Marka
%35
42.642,64 TL
27.717,72 TL
2.946,86 TL den başlayan taksitlerle!
Audio
| Analog Input | 2 x XLR, 2 x TRS electronically balanced |
| Analog Output | 2 x XLR, 2 x TRS electronically balanced |
| Input Max Level | 9 dBu |
| Output Max Level | 9 dBu |
| Minimun Load | 150 ohm |
| THD+N | 0.001% at 1kHz 0dBu |
| S/N | >96dBA |
| Frequency Response | 20Hz – 20kHz; -0.5dBu at 20Hz and 20kHz |
DSP & Processing
| DSP Engine | MARANI® DSP, 24bit (data) x 96 bit (coeff.) |
| DSP Resolution | 24×32 bit for filtering process 96 bits resolution on intermediate computation results |
| Parametric Equalization | 15 filters per channel |
| Filter Gain | From -15dBu up to +15dBu by 0.5dBu resolution steps |
| Center Frequency | Selectable with a 1/24th of octave resolution step from 20Hz up to 20kHz |
| Filter Q/BW | Q from 0.4 up to 128 |
| Graphic Equalizer | 15 bands per channel |
| Crossover Section HPF/LPF | Butterworth 6/12 Filter resolution 1/24th of octave |
| Noise Gate | Threshold from -90dBu up to -60dBu Release time from 1ms up to 80ms (5ms resolution up to 20ms, 10ms resolution up to 40ms and 20ms resolution up to 80ms) Attack time from 0.5 sec up to 1 sec (0.1sec resolution) |
| Delay | 300,987 ms 21us increment/decrement steps per channel |
General
| Device Presets | 16 Factoty + 16 User |
| Front Panel | 2x20 character LCD display with blue LED backlight Input Level POT Output Level POT 3 x Switch button (Process ON/OFF, ENTER, QUIT, Power ON/OFF) VARIATON Rotary encoder NAVIGATION Rotary encoder 2 x Red LED (CLIP, Power on) 2 x Green LED (ENTER, QUIT) |
| Rear Panel | 2 x XLR female connector (Input) 2 x XLR male connector (Output) 2 x 1/4" TRS line jack female connector (Input) 2 x 1/4" TRS line jack female connector (Output) 1 x MIDI IN port 1 x MIDI OUT port USB type A connector 1 x Voltage setting toggle switch (110/220V) IEC C13 16A connector; |
| Main AC | 110-220VAC 50/60Hz (Switchable); 40W |
| Dimensions | 19”x 1.75”x 7” (483x44x180mm) 1RU |
| Package size | 560x320x110mm |
| Weight, Net / Shipping | 6.61 lbs (3.0 Kg) / 7.11 lb (3.5 Kg) |
