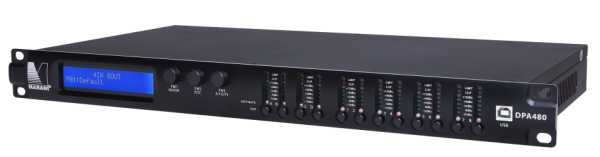

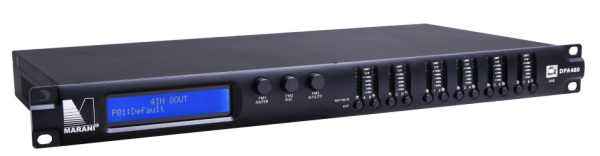

DPA480 4 in 8 out Speaker Management System
0 - Yorum Yap
Marka
%35
117.212,59 TL
76.188,18 TL
8.100,07 TL den başlayan taksitlerle!
Audio
| Analog Input | 4 x XLR electronically balanced |
| Analog Output | 8 x XLR electronically balanced |
| Digital Input | 2 AES/EBU |
| Minimun Load | 150 ohm |
| THD+N | ≤0.005 @1kHz 20dBu ≤0.004 @1kHz 0dBu |
| S/N | >110dBA |
| Frequency Response | 20Hz – 20kHz; ±0.5dB |
| AD & DA Converters | 24bit-96kHz |
DSP & Processing
| DSP Engine | MARANI® DSP |
| DSP Resolution | 24bit (data) x 24 bit (coeff.),54bit accumulation registers, 96 bit precision on intermediate processing data |
| Parametric Equalization | 30 PEQ filters per input; 11 filters per output |
| Input Gain | From -18dB to +12dB by 0.1dBu resolution steps |
| Output Gain | From -18dB to +12 dB by 0.1dBu resolution steps |
| Filter Type | Bell, Shelving, HP/LP, All Pass, Band Pass, Notch Filter |
| Filter Gain | From -15dBu up to +15dBu by 0.5dBu resolution steps |
| Center Frequency | Selectable with a 1Hz resolution step from 20Hz up to 20kHz |
| Filter Q/BW | Bell Type: Q from 0.4 up to 128 in 100 steps Shelv/Hp/LP Type: Q from 0.1 up to 5.1 in 100 steps BandPass/Notch Type/ All Pass: Q from 4 up to 104 in 100 steps |
| Crossover Section HPF/LPF | Butterworth 6/12/18/24dB per octave Bessel 12/24dB per octave Linkwitz-Riley 12/24/36/48 dB per octave |
| Internal Noise Generator | White/Pink Noise; Level from -40dBu to 0dBu |
| Input Noise Gate | Threshold from -80dBu up to -50dBu Attack time from 1ms up to 1000ms; Release time from 10ms up to 1000ms |
| Output Peak Limiter | Threshold from 20dBu to -10dBu Attack time from 1ms up to 900ms; Release time from 0.1sec up to 5sec |
| Headroom on internal overflow Processes | 12dB |
| Routing | Full Matrix Mixing Mode |
| Input/Output RMS Limiter | Threshold from 20dBu up to -10dBu Ratio 2:1~32:1; Knee: 0~100% Make up from -12dB to +12dB Attack time from 5ms up to 200ms;Release time from 0.1 sec up to 3 sec |
| Delay | 480 ms 10.4us increment/decrement steps per input, 270ms 10.4us increment/decrement steps per output |
| Ground Noise | -90 dBu |
General
| Device Presets | 32 User Presets |

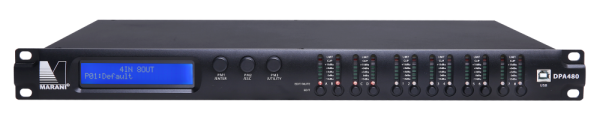

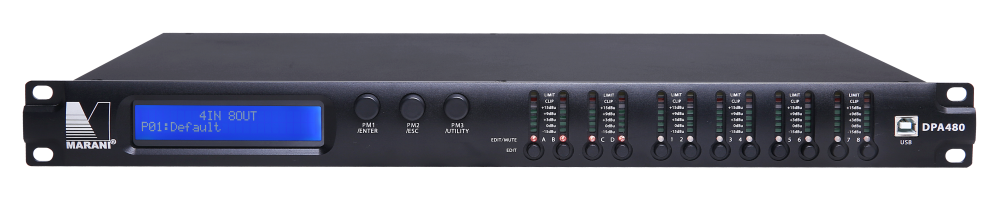

| Front Panel | 2x24 character LCD display with white/blue LED backlight 7-LED meter per input channel -15dBu to +15dBu, clip and limiter mode 7-LED meter per output channel -15dBu to +15dBu, clip and limiter mode Red/Blue Led (Edit/Mute) per channel PM1/ENTER, PM2/ESC, PM3/UTILITY rotary encoder push buttons EDIT/MUTE push button per channel USB type B connector |

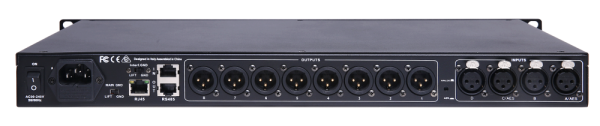

| Rear Panel | 4 x XLR female connector (Input) 8 x XLR male connector (Output) 2 x RJ45 connection 1x RS45 connection IEC C13 10A connector; Power on/off switch |
| Main AC | 90-240VAC (50/60Hz) – 40W |
| Dimensions | 19”x 1.75”x 9.84” (483x44x250mm) 1RU |
| Weight, Net / Shipping | 7.71 lbs (3.5 Kg) / 8.82 lb (4 Kg) |
