DPA880T 8 in 8 out Digital Matrix System
0 - Yorum Yap
Marka
%35
128.583,96 TL
83.579,57 TL
8.885,90 TL den başlayan taksitlerle!
Audio
| Analog Input | 8 electronically balanced |
| Analog Output | 8 electronically balanced |
| Maximum Input Level | Line: +18dBu; Mic: -18dBu |
| Maximum Output Level | +18dBu |
| THD+N | 0.005% at 1kHz 0dBu |
| S/N | >104dBA |
| Frequency Response | 20Hz - 20kHz +/-1dB |
| AD & DA Converters | 24bit |
DSP & Processing
| DSP Engine | MARANI® DSP, 24bit (data) x 96 bit (coeff.) |
| DSP Resolution | 24×32 bit for filtering process 96 bits resolution on intermediate computation results |
| Input Equalization | 3-band parametric selected as Peaking or Low/High Shelving with variable Q per input channel Low/High Pass 1St order filter per input channel |
| Output Equalization | 5-band parametric EQ selected as Peaking or Low/High Shelving with variable Q per output channel |
| Filter Gain | From -12dBu up to +12dBu by 0.5dBu resolution steps |
| Center Frequency | Selectable with a 1/24th of octave resolution step from 20Hz up to 20kHz |
| Filter Q/BW | Q from 0.4 up to 10 by 0.1 resolution steps |
| Crossover Section HPF/LPF | Butterworth 6/12/18/24dB per octave Bessel, Linkwitz-Riley and custom 12/24dB per octave Filter resolution 1/24th of octave |
| RMS Compressor and Peak Limiter | Threshold from 18dBu up to -30dBu Attack time from 5ms up to 200ms (1ms resolution up to 20ms, 10ms resolution up to 100ms and 20ms resolution up to 200ms) Release time from 0.1 sec up to 3 sec (0.1sec resolution) Ratio from 1:1 to 32:1 (Compressor only) Adjustable Soft or Hard Knee (Compressor only) |
| Delay | 848,998 ms 21us increment/decrement steps per channel |
| Feedback Eliminator | Pitch Shifting algorithm only for Mic input channels |
General
| Device Presets | 6 User Presets + 4 by using S1-S4 digital input ports |

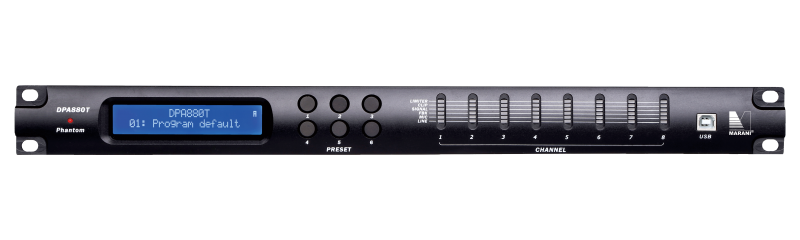

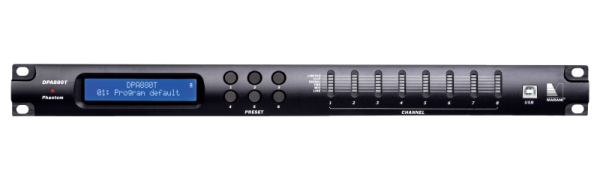

| Front Panel | 2x24 character LCD display with white/blue LED backlight 6-LED status indicators per channel (Line, Mic, FBK, Signal, Clip, Limiter) 1-LED indicator Phantom Power 6 x preset selection push button switch USB type B connector |

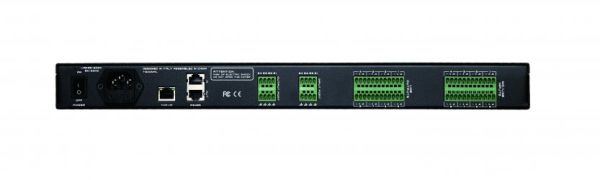

| Rear Panel | 2 x 12 pin Phoenix connector (Mic/Line Inputs) 2 x 12 pin Phoenix connector (Line Outputs) 2 x 4 pin Phoenix connector (S1-S4 digital input ports - TTL level 0-5V) 2 x 4 pin Phoenix connector (S1-S4 digital output ports - TTL level 0-5V) 2 x RJ45 for RS485 In/Out connection 1 x RJ45 connector with activity LEDs for Ethernet connection (10/100 TCP-IP) IEC C13 16A connector; Power on /off switch |
| Optional Device | Marani® CP4 Wall Panel control |
| Main AC | 90-240VAC (50/60Hz) – 40W |
| Dimensions | 19”x 1.75”x 9” (483x44x229mm) 1RU |
| Weight, Net / Shipping | 7.71 lbs (3.5 Kg) / 8.82 lb (4 Kg) |
