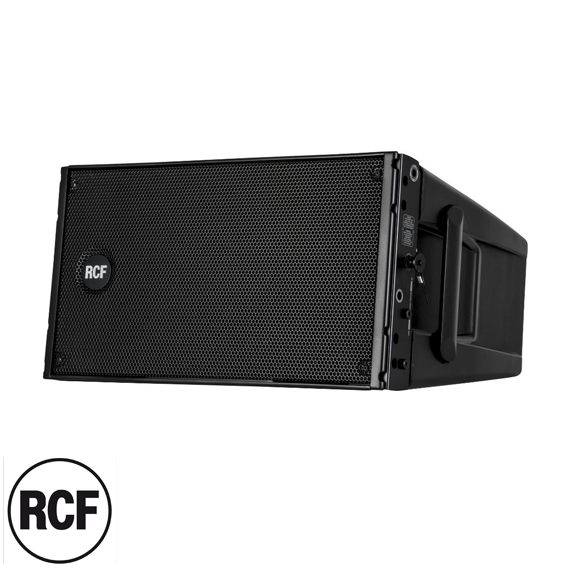

HDL10A Line Array Module
0 - Yorum Yap
Marka
Garanti Süresi
24 Ay
102.563,55 TL
10.904,21 TL den başlayan taksitlerle!
SPECIFICATIONS
Acoustical specifications
FREQUENCY RESPONSE:
65 Hz ÷ 20000 Hz
MAX SPL @ 1M:
133 dB
HORIZONTAL COVERAGE ANGLE:
100°
VERTICAL COVERAGE ANGLE:
15°
Transducers
COMPRESSION DRIVER:
1 x 2.0'', 2.5'' v.c
WOOFER:
2 x 8'', 2.0'' v.c
Input/Output section
INPUT SIGNAL:
bal/unbal
INPUT CONNECTORS:
XLR
OUTPUT CONNECTORS:
XLR
INPUT SENSITIVITY:
-2 dBu/+4 dBu
Processor section
CROSSOVER FREQUENCIES:
800 Hz
PROTECTIONS:
Thermal, RMS
LIMITER:
Soft Limiter
CONTROLS:
Cluster, HF, High curving, Indoor
Power section
TOTAL POWER:
1400 W Peak, 700 W RMS
HIGH FREQUENCIES:
400 W Peak, 200 W RMS
LOW FREQUENCIES:
1000 W Peak, 500 W RMS
COOLING:
Convection
CONNECTIONS:
Powercon IN/OUT
Standard compliance
CE MARKING:
Yes
Physical specifications
CABINET/CASE MATERIAL:
PP Composite
HARDWARE:
Rigging flyware
HANDLES:
2 side
GRILLE:
Steel
COLOR:
Black, White
Size
HEIGHT:
294 mm / 11.57 inches
WIDTH:
569 mm / 22.4 inches
DEPTH:
434 mm / 17.09 inches
WEIGHT:
20.4 kg / 44.97 lbs
Shipping informations
PACKAGE HEIGHT:
375 mm / 14.76 inches
PACKAGE WIDTH:
650 mm / 25.59 inches
PACKAGE DEPTH:
500 mm / 19.69 inches
PACKAGE WEIGHT:
23 kg / 50.71 lbs
