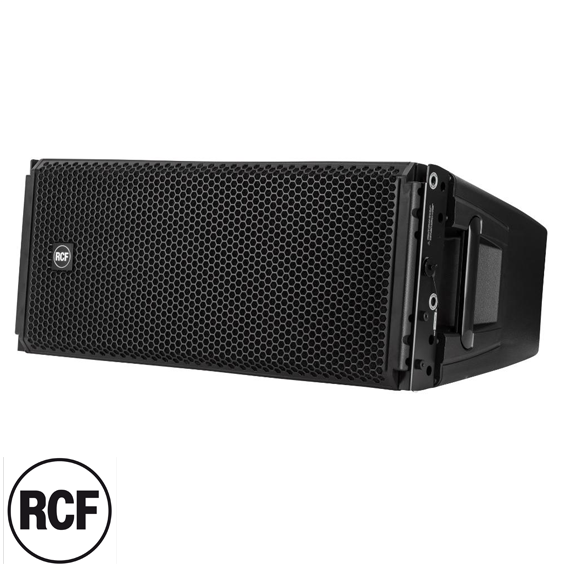

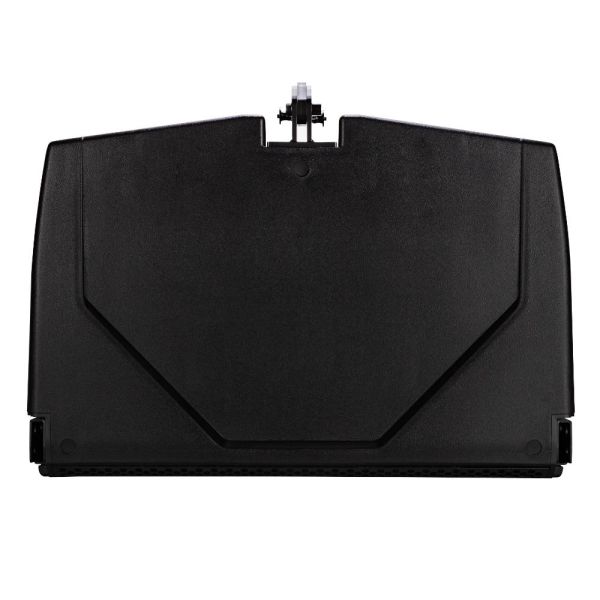

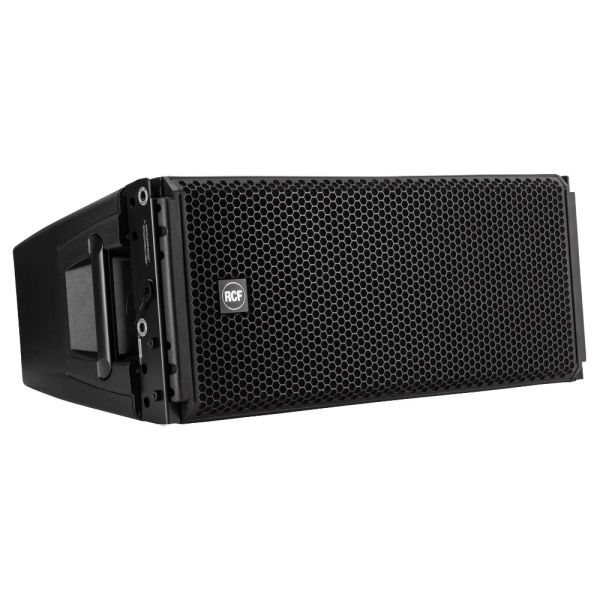

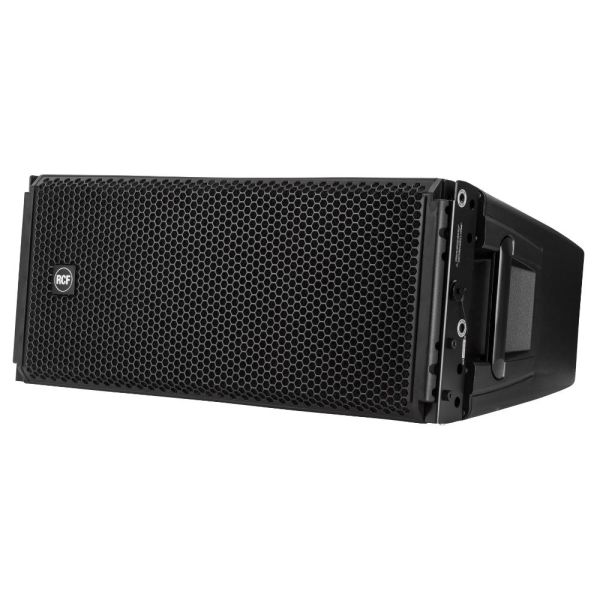

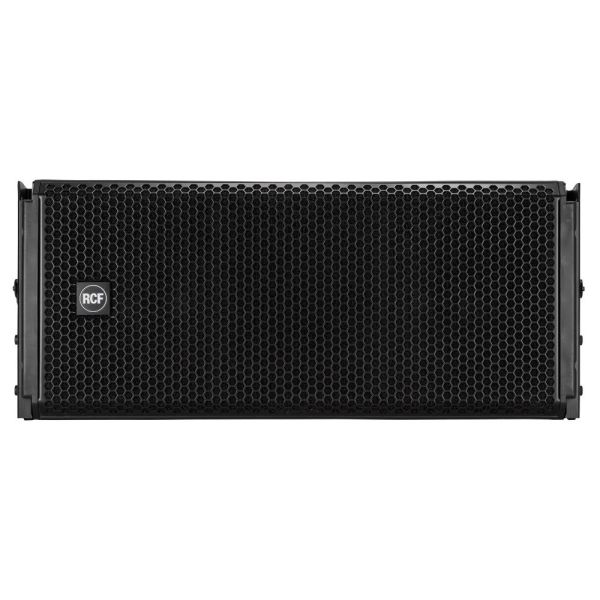

HDL30A Line Array Module
0 - Yorum Yap
Marka
Garanti Süresi
24 Ay
190.913,29 TL
20.297,26 TL den başlayan taksitlerle!
SPECIFICATIONS
Acoustical specifications
FREQUENCY RESPONSE:
40 Hz ÷ 20000 Hz
MAX SPL @ 1M:
143 dB
HORIZONTAL COVERAGE ANGLE:
90°
VERTICAL COVERAGE ANGLE:
10°

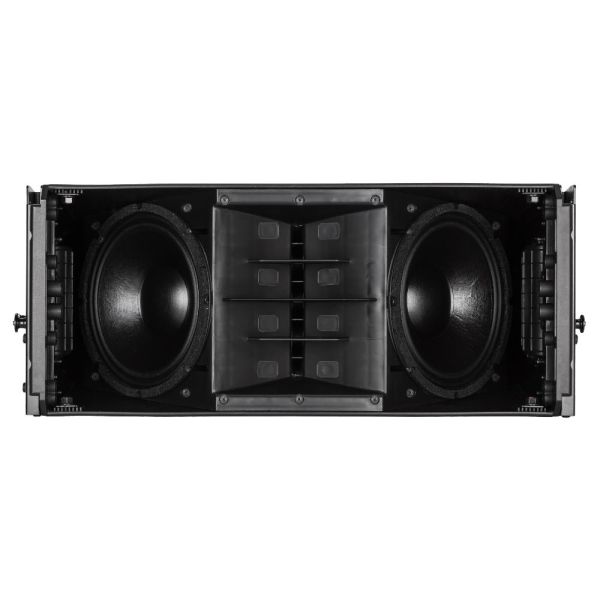

Transducers
COMPRESSION DRIVER:
2 x 1.4'' neo, 3.0'' v.c
MIDRANGE:
4 x 6.0'' neo, 2.0'' v.c
WOOFER:
2 x 12'' neo, 3.0'' v.c

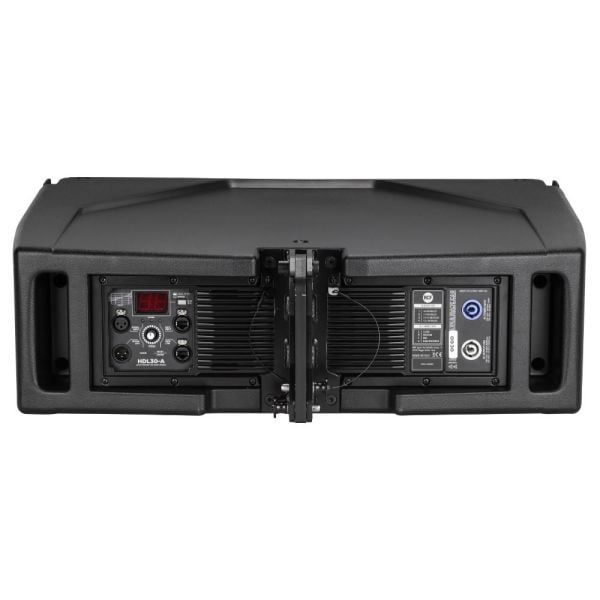

Input/Output section
INPUT SIGNAL:
bal/unbal
INPUT CONNECTORS:
XLR, RDNet Ethercon
OUTPUT CONNECTORS:
XLR, RDNet Ethercon
INPUT SENSITIVITY:
+4 dBu
Processor section
CROSSOVER FREQUENCIES:
200 Hz - 800 Hz
PROTECTIONS:
Thermal, RMS
LIMITER:
Soft Limiter
CONTROLS:
Cluster size, HF correction, RDNET
Power section
TOTAL POWER:
8000 W Peak, 4000 W RMS
HIGH FREQUENCIES:
2000 W Peak, 1000 W RMS
MID FREQUENCIES:
2000 W Peak, 1000 W RMS
LOW FREQUENCIES:
4000 W Peak, 2000 W RMS
COOLING:
Convection
CONNECTIONS:
Powercon IN/OUT
Standard compliance
CE MARKING:
Yes
Physical specifications
CABINET/CASE MATERIAL:
Baltic birch plywood
HARDWARE:
Integrated Mechanics

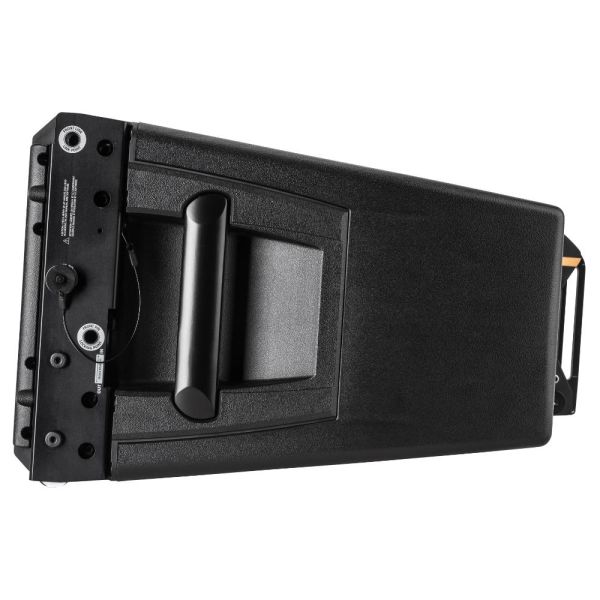

HANDLES:
2 side, 2 rear
GRILLE:
Steel
COLOR:
Black
Size
HEIGHT:
366 mm / 14.41 inches
WIDTH:
1171 mm / 46.1 inches
DEPTH:
502 mm / 19.76 inches
WEIGHT:
58.4 kg / 128.75 lbs
Shipping informations
PACKAGE HEIGHT:
400 mm / 15.75 inches
PACKAGE WIDTH:
1200 mm / 47.24 inches
PACKAGE DEPTH:
600 mm / 23.62 inches
PACKAGE WEIGHT:
62.4 kg / 137.57 lbs
