iD14 MK2 Ses Kartı
0 - Yorum Yap
Marka
Garanti Süresi
24 Ay
%5
11.954,09 TL
11.356,39 TL
1.207,37 TL den başlayan taksitlerle!
Teknik Özellikler

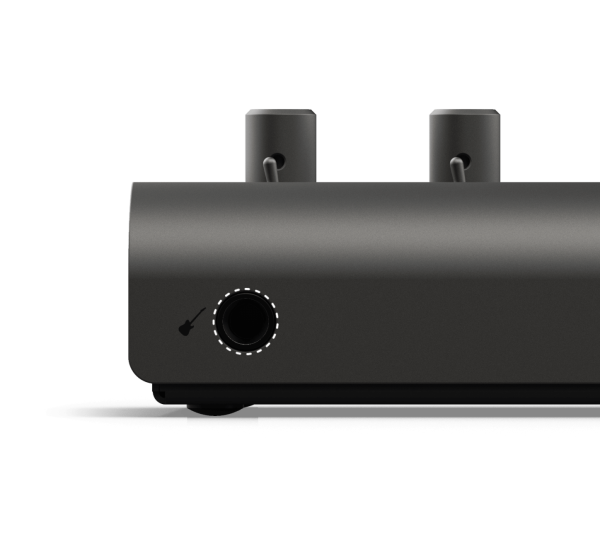

D.I / Enstrüman Girişi
• DI Sinyal Giriş Aralığı: 40dB
• Lineup: 12dBu = 0dBFS
• THD+N @ 0dBu: 0.1%
• SNR: 100dBu A-Weighted
• FREKANS CEVABI – MİNİMUM GAIN: ±0.5dB 10Hz to 20kHz
• 1/4” TS JACK:Tip (Hot) & Sleeve (Shield)
Mikrofon Preamfisi
• GAIN ARALIĞI: 58dB
• LINEUP: 12dBu = 0dBFS
• MİKROFON MAKSİMUM GİRİŞ SEVİYESİ: 12dBu
• MAKSİMUM GİRİŞ SEVİYESİ: 21dBu
• GİRİŞ EMPEDANSI (Mikrofon): 2.8k
• GİRİŞ EMPEDANSI (Line): >8k
• THD+N @ 0dBu: 0.00170%
• THD+N @ 0dBu MAKSİMUM GAIN: <0.04%
• SNR: 101dBu A-Weighted
• EIN: 129dB A-Weighted
• CMRR @ 1k: >75dB
• CROSSTALK: >-100dB
• FREKANS CEVABI – MİNİMUM GAIN: ±0.5dB 10Hz to 40kHz
• XLR COMBI DİŞİ: Pin 2 (Hot), Pin 3 (Cold) & Pin 1 (Shield)
• 1/4” TRS JACK: Tip (Hot), Ring (Cold) & Sleeve (Shield)
Analog -> Dijital Konvertör
• THD+N @ -1dBFS: 0.001%
• DYNAMIC RANGE: 120dB A-Weighted
• CMRR: >80dB
• FREQUENCY RESPONSE: ±0.5dB 10Hz to 40kHz
Line Çıkışlar (DAC):
• LINEUP: 12dBu = 0dBFS
• THD+N @ -1dBFS: 0.0006%
• DİNAMİK ARALIK: 125.5dB A-Weighted
• CROSSTALK: >120dB
• FREKANS CEVABI: ±0.1dB 10Hz to 40kHz
• 1/4” TRS JACK: Tip (Left), Ring (Right) & Sleeve (Shield)
Kulaklık Çıkışları:
• LINEUP: 18.5dBu = 0dBFS
• THD+N @ -1dBFS: 0.0009%
• DİNAMİK ARALIK: 125.5dB A-Weighted
• CROSSTALK: >116dB
• FREKANS CEVABI: ±0.25dB 10Hz to 40kHz
• MAKSİMUIM SEVİYE @ 30R: 2.59V Peak, 1.827V RMS, 223mW
• MAKSİMUM SEVİYE @ 62R: 4.18V Peak, 2.95V RMS, 280mW
• MAKSİMUM SEVİYE @ 600R: 7.72V Peak, 5.46V RMS, 100mW
• 1/4” TRS JACK: Tip (Left), Ring (Right) & Sleeve (Shield)
USB-C High Speed:
BUS POWER:
• MİNİMUM GEREKSİNİM: 0.9A @ 5V / >=USB 3.0 Port
• MAKSİMUM GEREKİNİM: 1.5A @ 5V / USB-C: Provides higher headphone outputs levels
• GİRİŞ KANAL SAYISI: 10
• ÇIKIŞ KANAL SAYISI: 16
• DSP MIXER LATENCY ROUND TRIP (girişten çıkışa):
44.1kHz / 0.65mS
48.0kHz / 0.6mS
88.2kHz / 0.33mS
96.0kHz / 0.31mS
