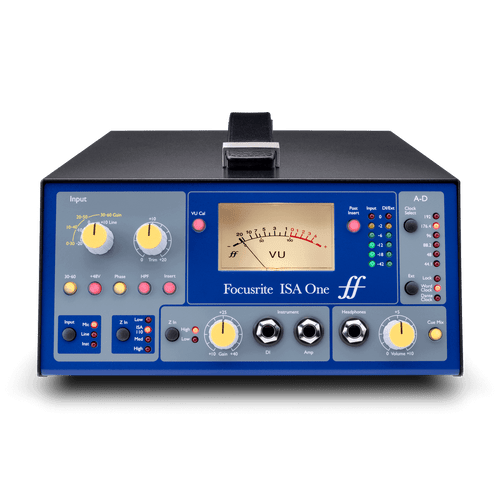

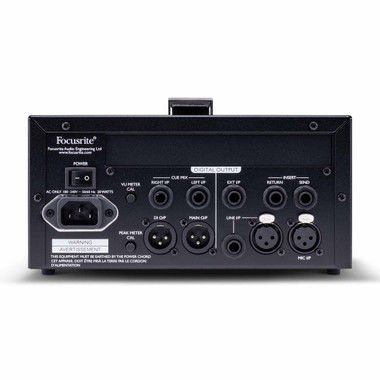

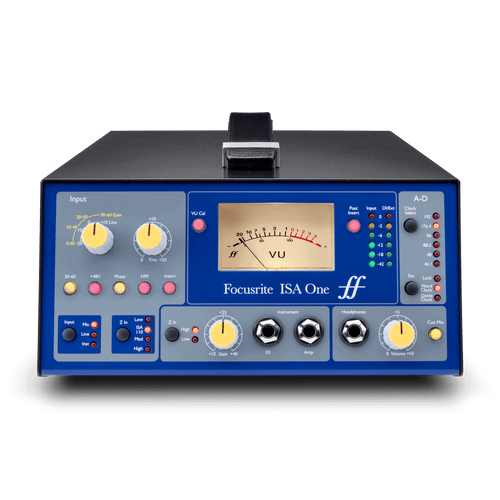

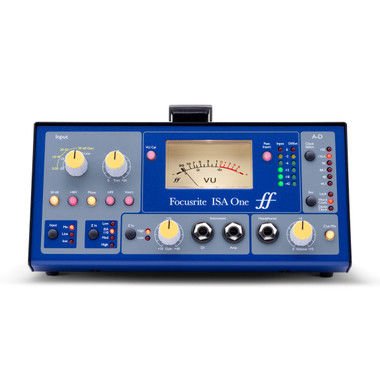

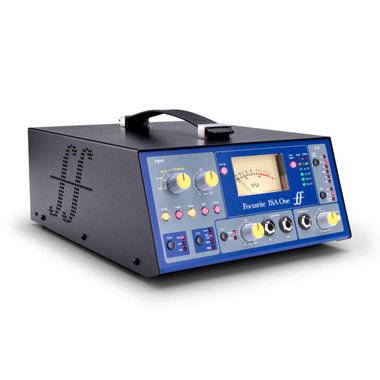

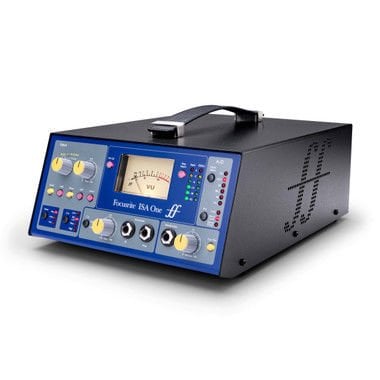

ISA ONE ANALOG Mikrofon Preamp
0 - Yorum Yap
Marka
45.535,20 TL
4.841,15 TL den başlayan taksitlerle!
Specifications in detail
Mic input response
- Gain Range (Mic)0dB to 60dB in 10dB steps 20 dB of variable gain
- EIN (Mic)-126dB measured at 60dB of gain with 150 Ohm terminating impedance and 22Hz/22kHz band-pass filter
- Noise (Mic)Noise at output with unity gain (0 dB) and 22 Hz-22 kHz band pass filter-97 dBu
- Signal-To-Noise Ratio (Mic)106 dB relative to max headroom (9dBu)
- Frequency Response (Mic)At minimum gain (0 dB)-0.5dB down at 10Hz and -3dB down at 125kHz
- CMRR (Mic)98dB (Channel 1, 1kHz, maximum gain with 24 dBu input)
- Crosstalk Channel To Channel (Mic)With 10dB@1kHz input to chA, chB output =104dBrA. With 10dB@10kHz input to chA, chB output = 84dBrA
Line input response
- Gain Range (Line)-20dB to 10dB in 10dB steps 20 dB of variable gain
- Input Impedance (Line)10 kO from 10 Hz to 200 kHz
- Total Harmonic Distortion Noise (Line)Measured with a 0 dBu input signal, and a 22 Hz-22 kHz band pass filter0.0001
- Frequency Response (Line)At unity gain (0 dB)-0.3dB down at 10Hz and -3dB down at 200kHz
Instrument input response
- Gain Range (Instrument)10dB to 40dB continuously variable
- Input Impedance (Instrument)High = greater than 1M Low =greater than 300k
- THD (Instrument)At minimum gain ( 10)
High-pass filter
- Roll-Off18 dB per octave (3 pole filter)
- FrequencyFixed 75Hz measured at the 3dB down point
