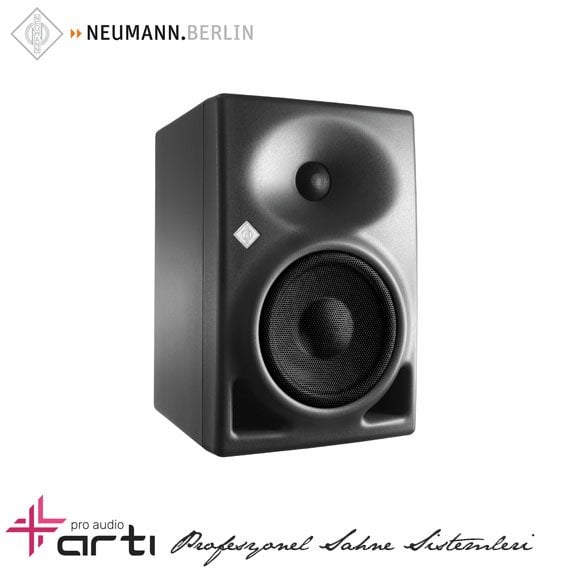

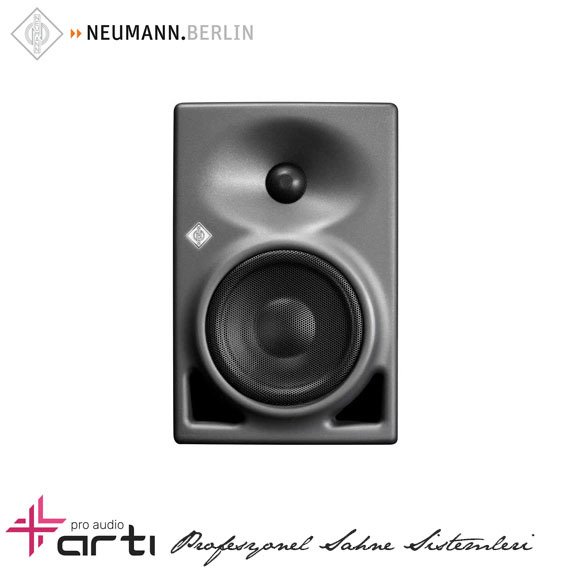

The KH 120 is a two-way bi-amplified monitor with thermally protected class-AB amplifiers (80 W each). Just like the drivers, its Mathematically Modeled Dispersion™ (MMD™) waveguide is calculated with an optimal level of precision. Sound distributed in a horizontally precise manner ensures flexibility in the listening position; the narrower vertical dispersion reduces the negative effects of nearby reflections – for example from a desk or mixing console. The finely controlled dispersion characteristics optimize reproduction in even the most varied of room configurations.
BEST WORKING ENVIRONMENT: CLOSE TO PROFESSIONAL EARS
The KH 120 is typically used in near-field applications such as project, music, broadcast and post-production studios for recording, mixing and mastering. It it also available as a digital input "D” version.
PORTS AND HIGH DYNAMICS: NO LONGER A CONTRADICTION
With its digital switched-mode power supply and bi-amplification, the KH 120 realizes sound pressure of up to 111.1 dB and in doing so, retains a high-resolution and neutral representation across the entire frequency response. This provides sufficient energy for maximum dynamics without distortion and losses. As a result, the bass goes down to impressive 52 Hz. Despite using ports, there is no "overhang” in the bass response. The transient response remains well in control. The optimized design of the drivers delivers clean sound right down to the lowest parts of the 50 Hz region. This rich foundation offers enough room to work cleanly on the mix without the necessity for a supplementary subwoofer. In the demanding treble range, the specially developed, powerful alloy fabric dome ensures distortion-free reproduction.
DIGITAL INPUT AND DELAY

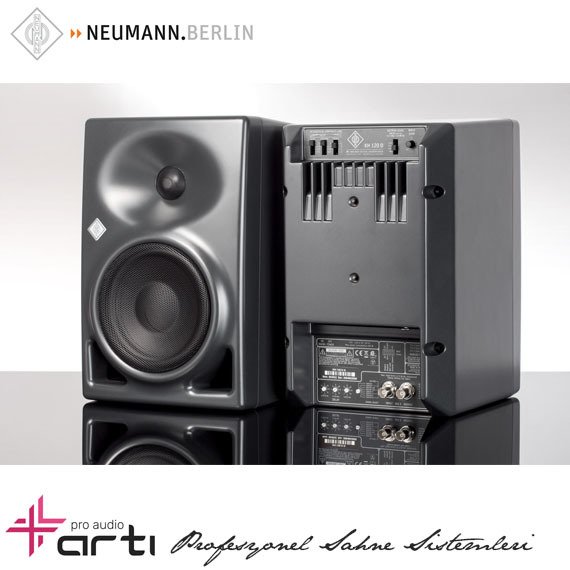

The KH 120 D enables flexible digital signal connectivity (24 bit, 192 kHz, AES3 and S/P-DIF) via a digital BNC input and buffered BNC output. Audio-visual synchronization ensures a lip sync delay of 0 to 10/12 frames. The loudspeaker can be delayed up to 400 ms, in order to compensate for varying listening distances.
THE PERFECT COMPLEMENT: THE KH 750 DSP SUBWOOFER
In addition to its outstanding acoustic properties this subwoofer offers functions for non DSP-based Neumann monitors connected (analog) to its outputs regarding the interplay with the following tools:
- Automatic Monitor Alignment – Automatic room correction of stereo systems using the Neumann MA 1 measurement microphone (software for Mac/PC)
- Neumann.Control – Free iPad®-App for setup, operation, and room correction of stereo systems via guided and/or manual alignment
HUNDREDS OF GOOD REASONS FROM THE NEUMANN PHILOSOPHY
The KH 120 has been developed true to the Neumann philosophy for monitor loudspeakers. Every component, every shape, every signal and every wave motion is a consequence of this philosophy. No form or component is there without reason. There are hundreds of tangible reasons built into the KH 120, which all stand for exceptionally pure and neutral sound. These include, for example, curvatures of the housing that reduce edge diffraction. Also included is the pistonic output of the bass driver which does not give rise to harmonic distortions, even with the highest sound peaks. Some of these reasons are obvious in the KH 120. Others Neumann prefers to keep to itself. But together, each can be heard – sound professionals in both large and small studios all around the world can testify to this. You can read more about the Neumann philosophy for studio monitors here.
