NX3000D 2x1500 Watt Power Amfi
Ultra-Lightweight 3000-Watt Class-D Power Amplifier with DSP Control and SmartSense Loudspeaker Impedance Compensation
Product Features
-
Delivers 2 x 1500 Watts into 2 Ohms; 2 x 900 Watts into 4 Ohms; 3000 Watts into 4 Ohms (bridge mode) and weighs less than 7.9 lbs / 3.6 kg
-
Ultimate reliability through revolutionary cool-running High-Density Class-D technology with "near-zero" thermal buildup
-
Ultra-efficient switch-mode power supply for noise-free audio, superior transient response and low power consumption
-
High-performance DSP and 24-bit/96 kHz converters deliver ultimate signal integrity and extreme dynamic range
-
DSP section features sophisticated delay, crossover (3 filter types, up to 48 dB/octave), EQ (8 parametric, 2 dynamic), dynamics processing and lockable security settings
-
SmartSense Loudspeaker impedance compensation features fully linear frequency response at any speaker load impedance
-
Front panel LCD display enables setup and adjustment without PC
-
Can be set up, controlled and monitored via rear panel USB connector. Powerful remote software downloadable at behringer.com
-
"Zero-Attack" limiters offer maximum output level with reliable overload protection
-
Built-in Subwoofer/Satellite crossover for perfect subwoofer operation
-
Detented gain controls for precise level setting
-
Precise 4-segment Signal and Limit LEDs to monitor performance
-
XLR and 1/4'' TRS combination input connectors for compatibility with any source
-
Professional twist-lock speaker connectors for ultimate reliability
-
Independent DC, LF and thermal overload protection on each channel automatically protects amplifier and speakers without shutting down the show
-
"Back-to-front" ventilation system prevents thermal buildup for reliable operation

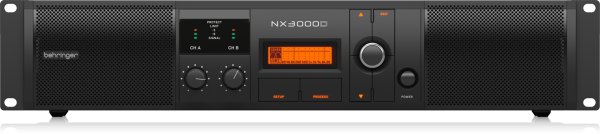

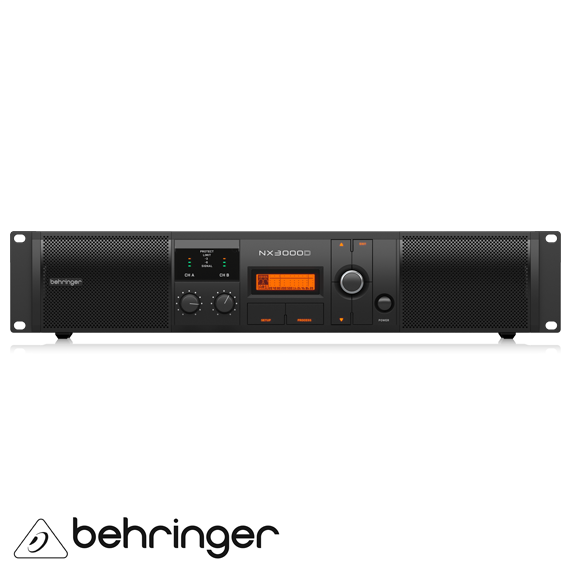

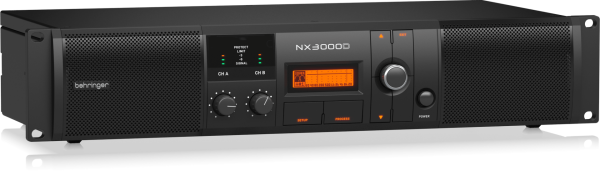

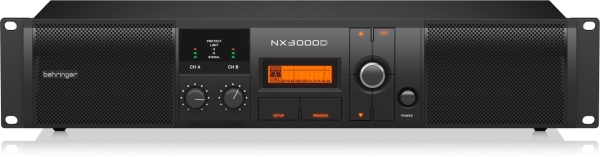

NX3000D
The NX3000D power amplifier packs 3000 Watts (2 x 1500 Watts @ 2 Ohms; 2 x 900 Watts @ 4 Ohms; 3000 Watts into 4 Ohms bridge mode) into exceptionally lightweight (7.9 lbs / 3.6 kg) and rack-mountable packages. Plus, the built-in DSP and 24-bit/ 96 kHz converters ensure the ultimate signal integrity with an extremely broad dynamic range. And because the NX3000D is so much more efficient than conventional designs, it runs cooler and doesn’t require the massive heat sinks and heavy toroid transformers typically associated with its conventional counterparts. Thanks to our “Zero-Attack” limiters that offer maximum output level with exceptionally-reliable overload protection and SmartSense Loudspeaker impedance compensation, which provides fully linear frequency response at any speaker load impedance, you can run the NX3000D full-out for hours on-end. Our revolutionary high-density Class-D technology, combined with an ultra-efficient, switch-mode power supply ensure this feather-light powerhouse will drive your rig effortlessly for many years to come.
Class-D - Massive Power, Perfect Sound
Thanks to our High-Density Class-D amplifier Technology, we are able to provide you with enormous power and incredible sonic performance in an easy-to-use, ultra-portable and lightweight package. Class-D amplification makes all the difference, offering the ultimate in energy efficiency – and eliminating the need for heavy power supplies and massive heat sinks. This amazing technology makes it possible to design and build extremely-powerful products that are significantly lighter in weight than their traditional counterparts, while using less energy and protecting the environment.
Sublimely Simple Operation
The front panel controls and indicators provide your system’s vital signs at a glance. After pressing the Power button, the Power LED lights to show the amp is ready for action. All channels feature positive-detent Gain controls with Signal LEDs that light when a signal is present, as well as Limit LEDs to indicate when the amplifier is running at full capacity. Just as elegant as the front, the rear panel is home to the combo XLR and 1/4" TRS Input connectors, making the NX3000D compatible with virtually any source, balanced or unbalanced. Professional twist-lock speaker sockets are provided to ensure every drop of output power gets to your loudspeakers.
