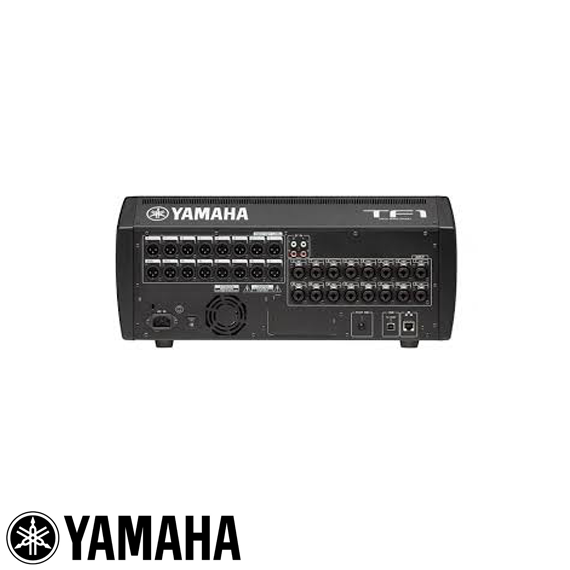

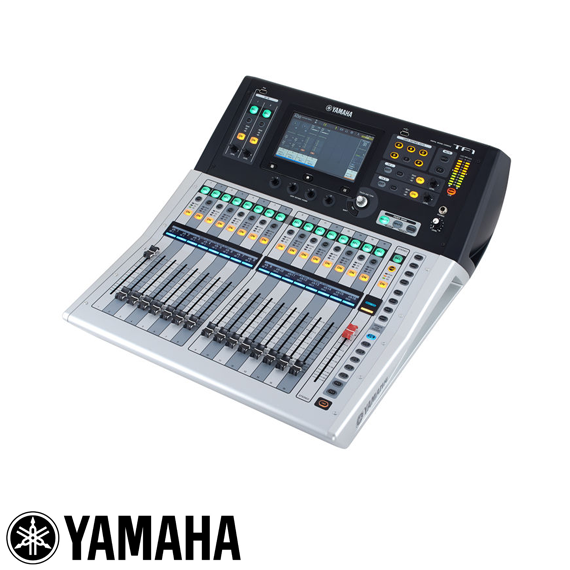

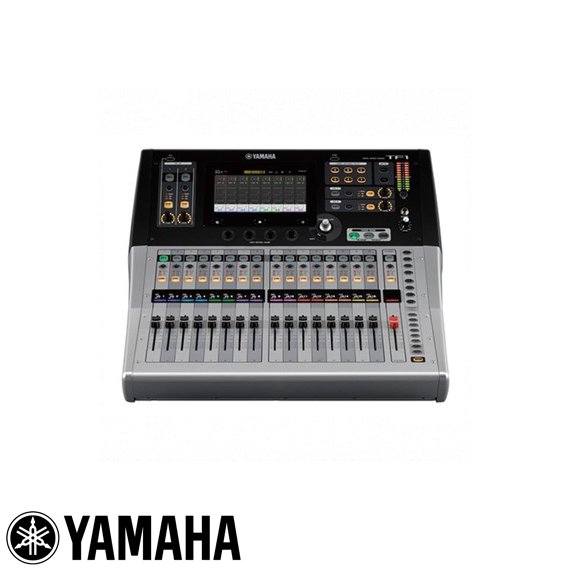

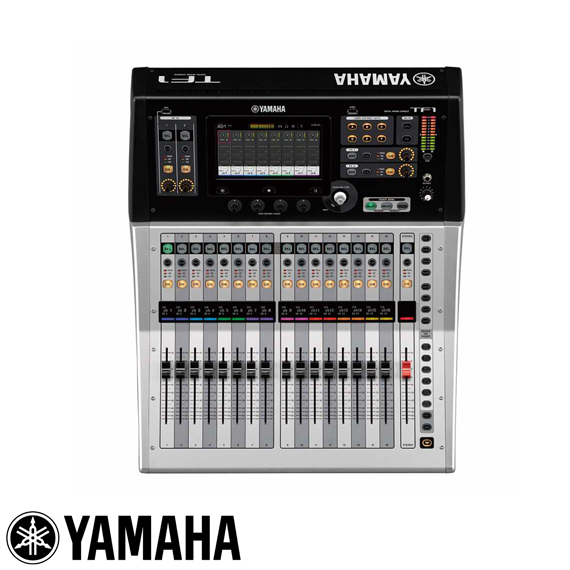

TF1 Digital Mixer

Compact, portable, and even rack mountable, the TF1 offers impressive capability and versatility for smaller systems.

• 17 motor faders (16 channels + 1 master)
• 40 input mixing channels (32 mono + 2 stereo + 2 return)
• 20 Aux buses (8 mono + 6 stereo) + Stereo + Sub
• 8 DCA groups with Roll-out
• 16 analog XLR/TRS combo mic/line inputs + 2 analog RCA pin stereo line inputs
• 16 analog XLR outputs
• 34 x 34 digital record/playback channels via USB 2.0 + 2 x 2 via a USB storage device
• 8 Effects and 10 GEQ
• 1 expansion slot for NY64-D audio interface card
