TPX152 Aktif Hoparlör
TPX152
2 Way 15" Full Range Loudspeaker for Portable PA Applications
Product Features
-
2 way full range loudspeaker for portable PA applications
-
250 Watts continuous, 1,000 Watts peak power
-
High excursion 15" low frequency driver with low mass voice coil for improved transient response
-
Aluminium dome 1" compression driver with extended high frequency reproduction
-
Low distortion waveguide provides 70? H x 50? V dispersion
-
Hard wearing carpet covered 18mm (3/4") wood construction
-
Rugged powder coated perforated steel mesh grille
-
Durable handles for easy lifting and carrying
-
Dual angle pole mount for accurate audience coverage
-
Neutrik speakON* NL4 connectors for reliable long life operation
-
10-Year Warranty Program*
-
Designed and engineered in the U.K.
PERFORMER TPX152
The 2-way full range TPX152 is a passive 15" 1,000 Watt loudspeaker system that is ideally suited for a wide range of portable speech and music sound reinforcement, including FOH, side and drum fill applications. Engineered as a standalone 2-way system not requiring any external equalization or filtering, the TPX152 achieves optimal performance when paired with a subwoofer and TURBOSOUND loudspeaker management systems.
The TPX152 loudspeaker features a high excursion 15" low frequency driver with a low mass voice coil for improved transient response, and an aluminium dome 1" compression driver mounted on a 70° horizontal by 50° vertical low distortion waveguide. All drivers are matched with an internal passive crossover network in a reflex-loaded enclosure.

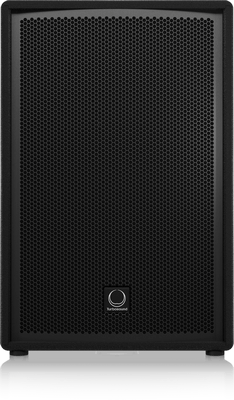

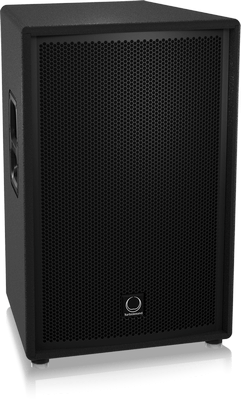

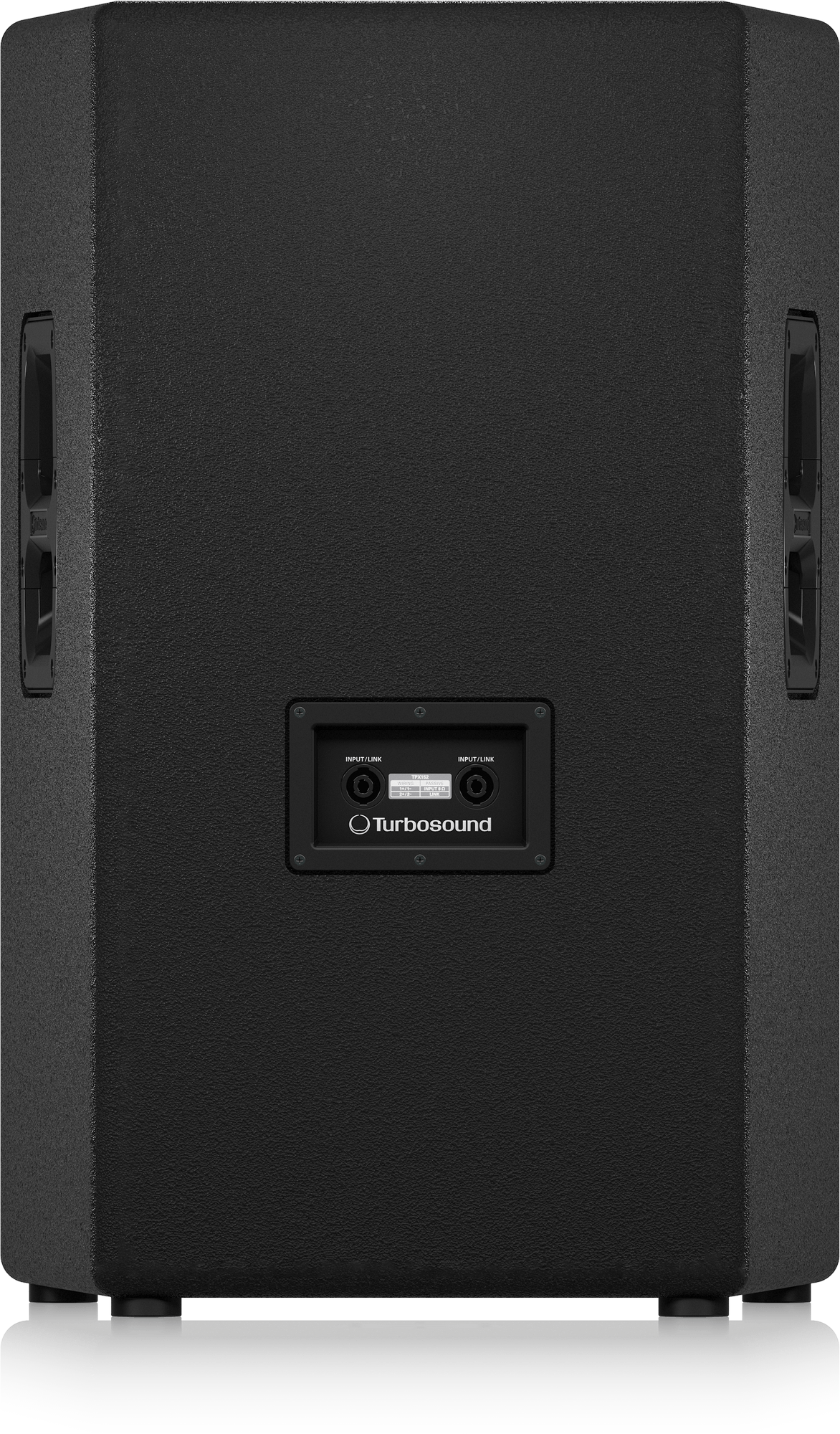

Covered in hard wearing black carpet, the cabinet is of 18 mm (¾ ") wood construction – and includes a rugged powder coated perforated steel mesh grille backed with reticulated foam, a dual-angle pole mount socket for use with 35 mm poles/speaker stands to optimise audience coverage, and durable handles for easy transport. A rear panel connector plate carries Neutrik speakON* NL4 connectors for input and link connections to additional enclosures.
Specification
System
| Frequency Response | 50 Hz – 20 kHz ±3 dB 40 Hz – 20 kHz -10 dB |
| Nominal Dispersion | 70° H x 50° V @ -6 dB points |
| Power Handling (IEC) | 250 W continuous, 1,000 W peak |
| Sensitivity | 97 dB (1 W @ 1 m) |
| Maximum SPL | 121 dB continuous, 127 dB peak |
| Impedance | 8 Ohms |
| Components | 1 x 15" (388 mm) LF driver 1 x 1" (25 mm) HF compression driver |
Enclosure
| Connectors | 2 x Neutrik speakON NL4 |
| Wiring | Pins 1+ / 1- input, pins 2+ / 2- link |
| Dimensions HWD | 708 x 463 x 439 mm (27.0 x 18.2 x 17.3") |
| Net Weight | 24.8 kg (54.7 lbs) |
| Construction | 18 mm (¾") particle board |
| Finish | Black carpet covering |
| Grille | Powder-coated perforated steel |
